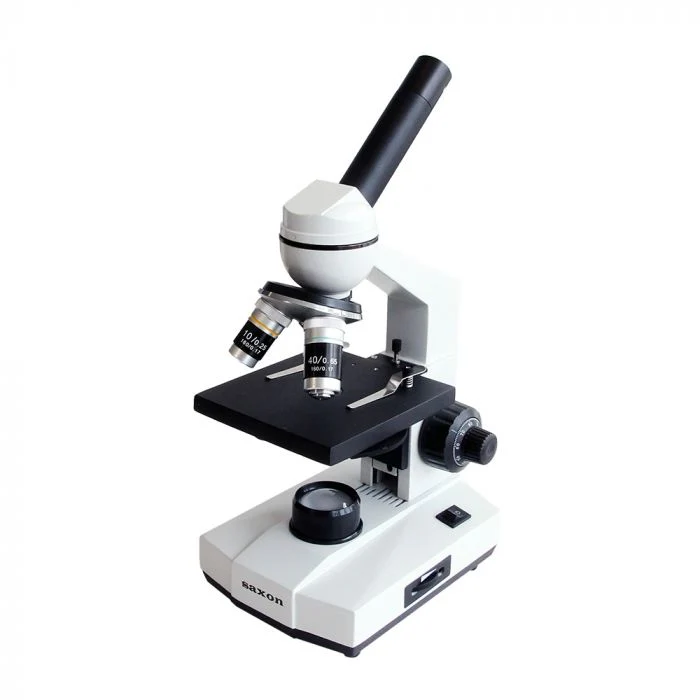

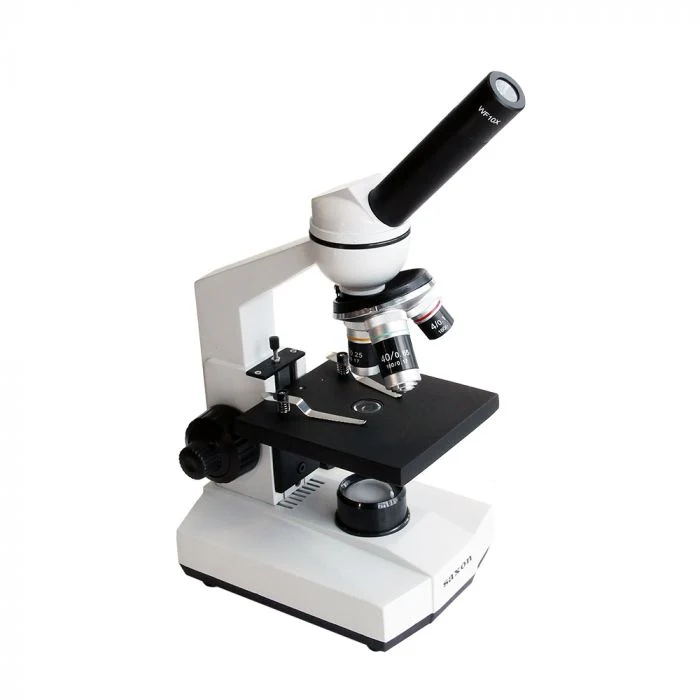

An ideal student and teachers microscope, the saxon ScienceSmart Biological Microscope 40x-640x (SBM) makes observing specimen easy and straightforward.

The magnification of 40x, 100x, 400x can be easily switched by rotating the nosepiece. To increase power, simply change the eyepiece to a WF16 and you will have additional magnification of 64x, 160x, 640x, . Once the nosepiece is clicked into place, the dual coarse and fine focus allows for further adjustment until a clear vision comes to place.

Specimens are illuminated with LED and the light intensity is easily adjustable with the dial on the base.

Description

 The saxon ScienceSmart Biological Microscope 40x-640x comes with a

• 45° inclined monocular head with locked-in eyepiece,
• one WF 10x and WF 16x eyepiece ,
• objectives of 4x, 10x & 40x
• and LED illumination.

Specifications

Warranty Information	3-Years Limited Warranty
Eyepiece	WF 10x, WF16x
Magnification Range	40x, 64x 100x, 160x, 400x, 640x
Objectives	4x, 10x, 40xR
Field of View	16mm & 13mm
Illumination	LED
Head Type	Monocular
Focus	Coarse & Fine
Condenser	Fixed Aperture
Stage Type	Fixed 110mmx120mm
Stand	Curved Arm
Power Supply	5V 1000mA AC Power
Weight	2kg

 What's in the box

	saxon WF10x, WF16x Eyepiece These are brand new widefield WF10X and WF 16X microscope eyepiece. They fit most common size microscopes. Give your microscope a boost with greater power & clarity at a fraction of the cost.
	saxon Adapter The adapter can support AC powered of this microscope
	saxon Dust Cover Clear, vinyl dust covers for the protection of your microscopes



Image Gallery



Corn Stalk
@40x, @100x, @400x
